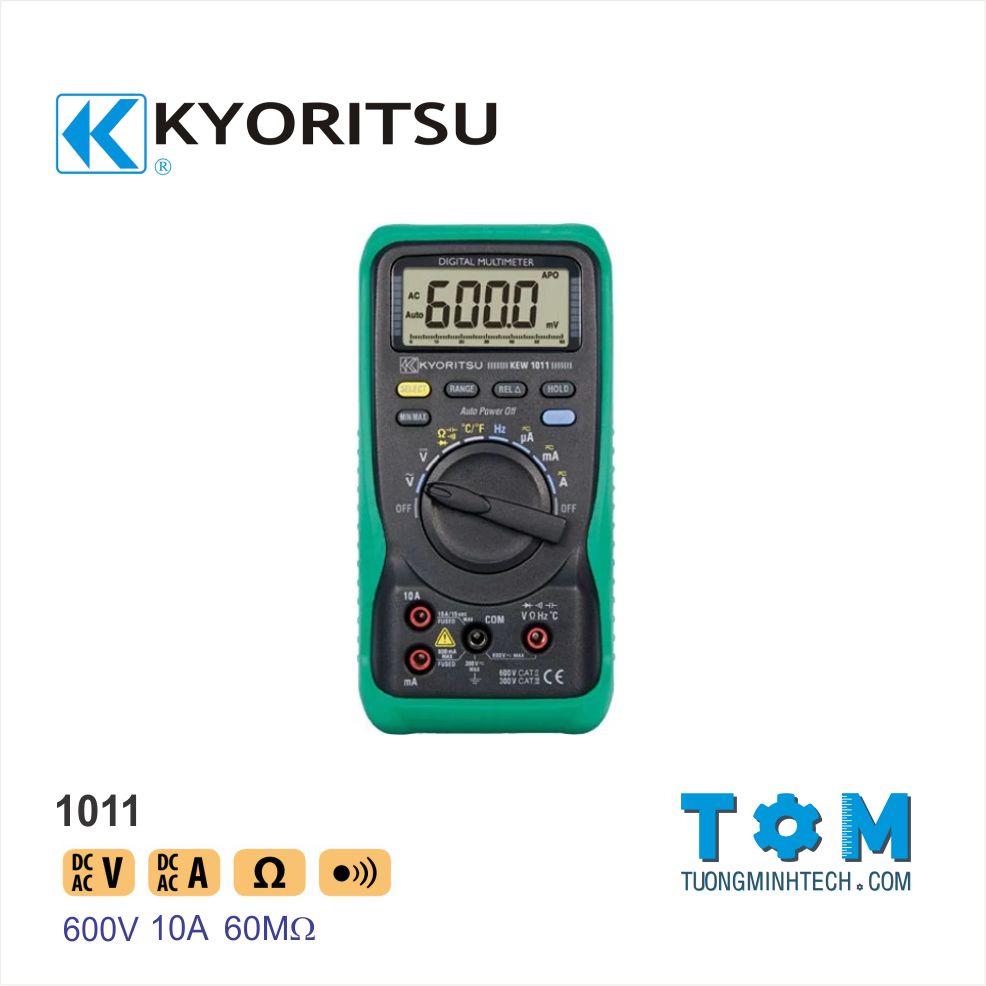

Đồng hồ vạn năng Kyoritsu 1011
Hãng sản xuất: Kyoritsu - Nhật Bản
Bảo hành chính hãng 12 tháng
Model: 1011
Hãng sản xuất: Kyoritsu - Nhật Bản
Xuất xứ: Made in china
Bảo hành chính hãng 12 tháng
Chức năng đo:
THÔNG SỐ KỸ THUẬT CHI TIẾT KYORITSU 1011

DC V | 600.0mV/6.000/60.00/600.0/600V |
AC V | 6.000/60.00/600.0/600V |
DC A | 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A) |
AC A | 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A) |
Ω | 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt |
Continuity buzzer | 0 - 600Ω (Buzzer sounds below 100Ω) |
Diode test | 2.8V Release Voltage:Approx. 0.4mA Test Current |
Capacitance | 40/400nF/4/40/400/4000µF |
Frequency | 10/100/1000Hz/10/100/1000kHz/10MHz |
DUTY | 0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz) |
Temperature | -50 - 300ºC (-58 - 572ºF) |
Applicable standards | IEC 61010-1 CAT III 300V Pollution degree 2 |
Display | 6040 Counts |
Power source | R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes) |
Dimensions | 161(L) × 82(W) × 50(D)mm |
Weight | Approx. 280g |
Included Accessories | 7066A (Test leads) |
Optional Accessories | 7234 (Crocodile clip test lead) |
