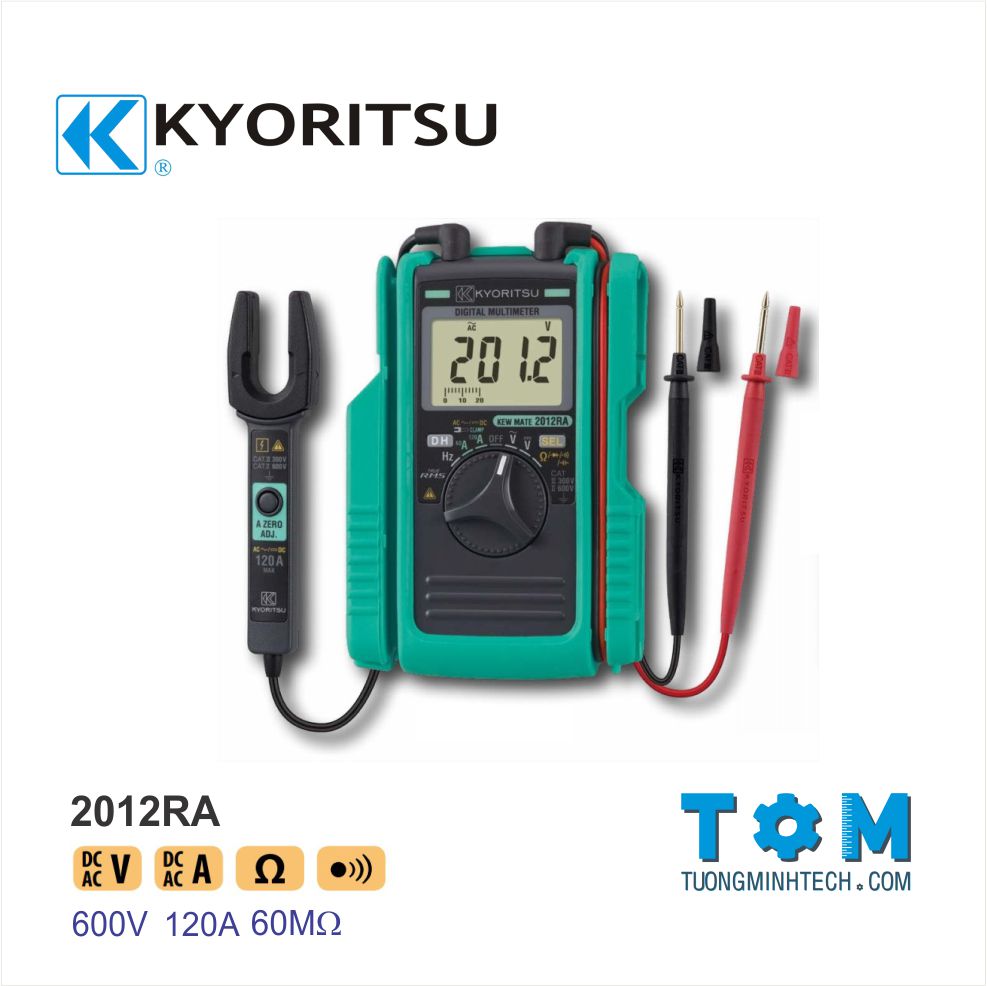

Đồng hồ vạn năng Kyoritsu 2012RA
Hãng sản xuất: Kyoritsu - Nhật Bản
Xuất xứ: Made in ThaiLand
Bảo hành chính hãng 12 tháng
Model: 2012RA
Hãng sản xuất: Kyoritsu - Nhật Bản
Xuất xứ: Made in ThaiLand
Bảo hành chính hãng 12 tháng
Chức năng đo:
THÔNG SỐ KỸ THUẬT CHI TIẾT KYORITSU 2012RA

DC V | 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) |
AC V | 6.000/60.00/600.0V (Input impedance: approx.10MΩ) |
DC A | 60.00/120.0A |
AC A | 60.00/120.0A |
Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ |
Continuity buzzer | Buzzer sounds below 35±25Ω |
Diode test | 2.000V±3.0%rdg±5dgt Open-loop voltage: approx. 2.7V |
Capacitance | 400.0nF/4.000/40.00µF |
Frequency | (AC A) |
Conductor size | Ø12mm max. |
Applicable standards | IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2 |
Power source | R03 (AAA)(1.5V) × 2 |
Dimensions | 128 (L) × 92 (W) × 27 (D) mm |
Weight | 220g approx. (including batteries) |
Included Accessories | R03 (AAA) × 2, Instruction manual |
Optional Accessories | 9107 (Carrying case [Soft]) |
